Milcor Access Doors
Milcor Access Door Benefits
Engineered for Specific Applications
To provide the function desired... to be easy to install... to give the desired finished apprearance.
Technical Assistance from Milcor
To meet special needs... to solve product problems...to help with installation.
One Year Warranty
Against defects in material...against problems in workmanship...one year after purchase.
Specifier Recognition
In most access door specifications...based on favorable experience...no need for exceptions in bidding.
Most Complete Product Line
Doors for walls and ceilings...for every type of construction...for every finish...non-fire rated and fire rated...for security/detention applications.
Engineered for Specific Applications
To provide the function desired... to be easy to install... to give the desired finished apprearance.
Technical Assistance from Milcor
To meet special needs... to solve product problems...to help with installation.
One Year Warranty
Against defects in material...against problems in workmanship...one year after purchase.
Specifier Recognition
In most access door specifications...based on favorable experience...no need for exceptions in bidding.
Most Complete Product Line
Doors for walls and ceilings...for every type of construction...for every finish...non-fire rated and fire rated...for security/detention applications.

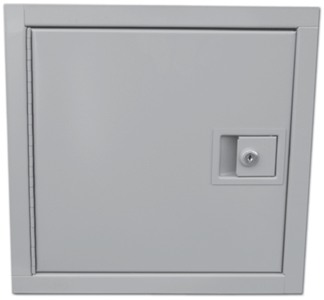

Universal Fire Rated Access Door
* Installs easily and works perfectly in any wall, any
ceiling any construction
* Needs no separate springs
* Code approved for both walls and ceilings
* Underwriters Laboratory Class B, 1 1/2 hour rating meets UBC, IBCO and BOCA codes for two hour rated walls
* Warnock Hersey acceptance in three-hour rated ceilings
* Self closing, self latching to meet the requirements of fire rated assemblies
* Needs no separate springs
* Code approved for both walls and ceilings
* Underwriters Laboratory Class B, 1 1/2 hour rating meets UBC, IBCO and BOCA codes for two hour rated walls
* Warnock Hersey acceptance in three-hour rated ceilings
* Self closing, self latching to meet the requirements of fire rated assemblies
Side View
* UL Certified 250 degree temperature rise for true fire safety
* Newly designed combination paddle latch lock
* Prime painted or attractive satin finish stainless steel
* 17 sizes from 8" x 8" to 48" x 48" to meet any building need
(special sizes available)
* UL Certified 250 degree temperature rise for true fire safety
* Newly designed combination paddle latch lock
* Prime painted or attractive satin finish stainless steel
* 17 sizes from 8" x 8" to 48" x 48" to meet any building need
(special sizes available)
* Carries Warnock Hersey label for one-hour combustible and one
and three hours non-combustible floor ceiling systems
* Meets codes for rated assembly by being self-closing, self-latching and capable of withstanding fire tests
* White ceramic fiberboard attached to face of door
* Finished with baked-on electrostatic powder prime paint
* 5 sizes from 12" x 12" to 24" x 36"
* Meets codes for rated assembly by being self-closing, self-latching and capable of withstanding fire tests
* White ceramic fiberboard attached to face of door
* Finished with baked-on electrostatic powder prime paint
* 5 sizes from 12" x 12" to 24" x 36"
for drywall ceilings Fire Rated Steel
for drywall, masonry or tile walls

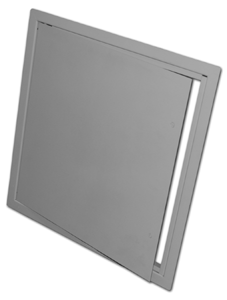

Style M or MS - Flush Door
Style M or MS - Flush Door
* Usable in any wall system
* One-piece frame prevents racking and keeps unit square
* 100% clear opening
* Concealed spring hinges allow door to open to 175 degrees
* Factory prime painted steel (M) or satin finish stainless steel (MS)
* 21 sizes from 6" x 6" to 36" x 36" (special sizes available)
* One-piece frame prevents racking and keeps unit square
* 100% clear opening
* Concealed spring hinges allow door to open to 175 degrees
* Factory prime painted steel (M) or satin finish stainless steel (MS)
* 21 sizes from 6" x 6" to 36" x 36" (special sizes available)
for drywall ceilings or walls

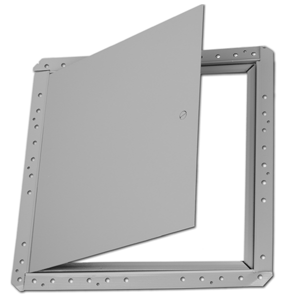

Style DW - Flush Door
Style DW - Flush Door
* Drywall bead on frame
* Complete access, doors open to 175 degrees
* Available prime painted or stainless steel
* 9 sizes from 8" x 8" to 24" x 36" (special sizes available)
* Complete access, doors open to 175 degrees
* Available prime painted or stainless steel
* 9 sizes from 8" x 8" to 24" x 36" (special sizes available)
for plaster walls or ceilings

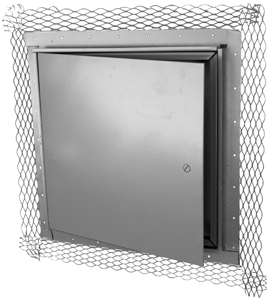

Style K - Flush Door
Style K - Flush Door
* Designed for plaster in new construction or remodeling
* Finishes flush with plaster for an attractive finished appearance
* Baked-on prime paint
* Expansion casing bead included as part of frame
* 6 sizes from 12" x 12" to 24" x 36" (special sizes available)
* Finishes flush with plaster for an attractive finished appearance
* Baked-on prime paint
* Expansion casing bead included as part of frame
* 6 sizes from 12" x 12" to 24" x 36" (special sizes available)
for suspended acoustical ceilings

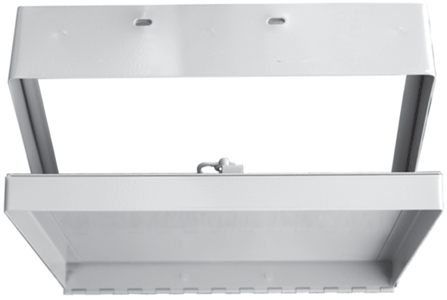

Style AT - Recessed Steel
Style AT - Recessed Steel
* Fits within ceiling grid openings
* Recessed face for application of acoustical tile or board
* Keeps acoustical surface intact
* Prime-coat of baked-on electrostatic paint
* Concealed spring hinges allow panel to open to 175 degrees for complete access
* 6 standard sizes available from 12" x 12" to 36" x 36" (special sizes available)
* Recessed face for application of acoustical tile or board
* Keeps acoustical surface intact
* Prime-coat of baked-on electrostatic paint
* Concealed spring hinges allow panel to open to 175 degrees for complete access
* 6 standard sizes available from 12" x 12" to 36" x 36" (special sizes available)
for acoustical plaster ceilings

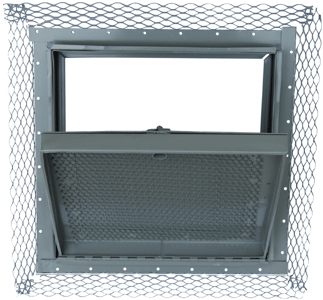

Style AP - Recessed Steel
Style AP - Recessed Steel
* Panels recessed for application of acoustical plaster
* Keeps acoustical surface intact
* Virtually invisible in ceiling with only a narrow white frame edge exposed
* 24" x 24" and larger panels reinforced for structural integrity
* 6 sizes from 12" x 12" to 36" x 36" (special sizes available)
* Keeps acoustical surface intact
* Virtually invisible in ceiling with only a narrow white frame edge exposed
* 24" x 24" and larger panels reinforced for structural integrity
* 6 sizes from 12" x 12" to 36" x 36" (special sizes available)
for suspended drywall ceilings

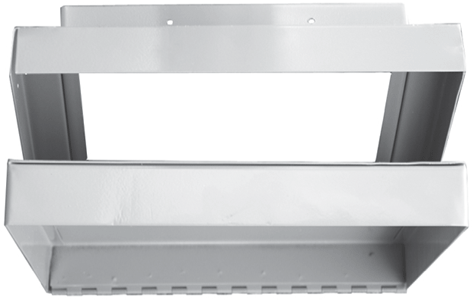

Style ATR - Recessed Fire Resistive Steel
Style ATR - Recessed Fire Resistive Steel
* 1 1/2" recess finishes flush with ceiling when two layers of 3/4" wallboard or
one each of wallboard and acoustical material are installed
* With wallboard installed, maintains fire rating of ceiling
* Can be installed in channel suspension or T-suspension systems
* 5 sizes from 12" x 12" to 24" x 36" (special sizes available)
* With wallboard installed, maintains fire rating of ceiling
* Can be installed in channel suspension or T-suspension systems
* 5 sizes from 12" x 12" to 24" x 36" (special sizes available)
for security or detention
walls or ceilings

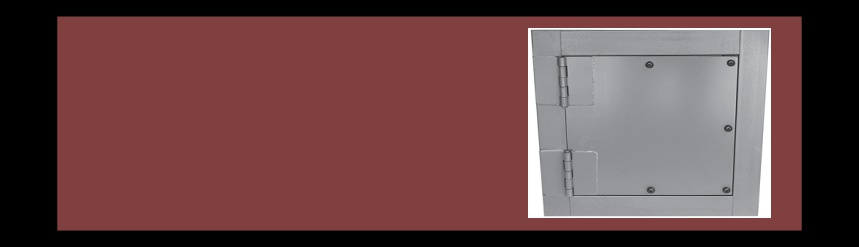

Security Access Doors
walls or ceilings
Security Access Doors
* Provide tamperproof access where security is important
* Welding frame with joints ground smooth
* Special stainless butt hinge prevents removal of hinge
* Heavy gauge steel door to resist penetration
* Tamperproof screws and detention lock available
* 14 sizes from 12" x 12" to 36" x 48" (special sizes available)
* Welding frame with joints ground smooth
* Special stainless butt hinge prevents removal of hinge
* Heavy gauge steel door to resist penetration
* Tamperproof screws and detention lock available
* 14 sizes from 12" x 12" to 36" x 48" (special sizes available)
Call 804-784-3541 for more information.
